50mm PVC coated Polyester Webbing

50mm PVC coated Polyester Webbing
  Zoom
 50mm PVC coated Polyester Webbing50mm PVC coated Polyester Webbing
Unit price.:  £62.43(Exc. 20% VAT.).
+

Bulk order discount bands:  Discounts of 5%, 10%, 20% and 25% are available when you order 5, 10, 50 and 100 units or more of this product.

Code::  BMN5000XB-PVC-100M

Sales/pricing unit = 100m roll.

Product details below.

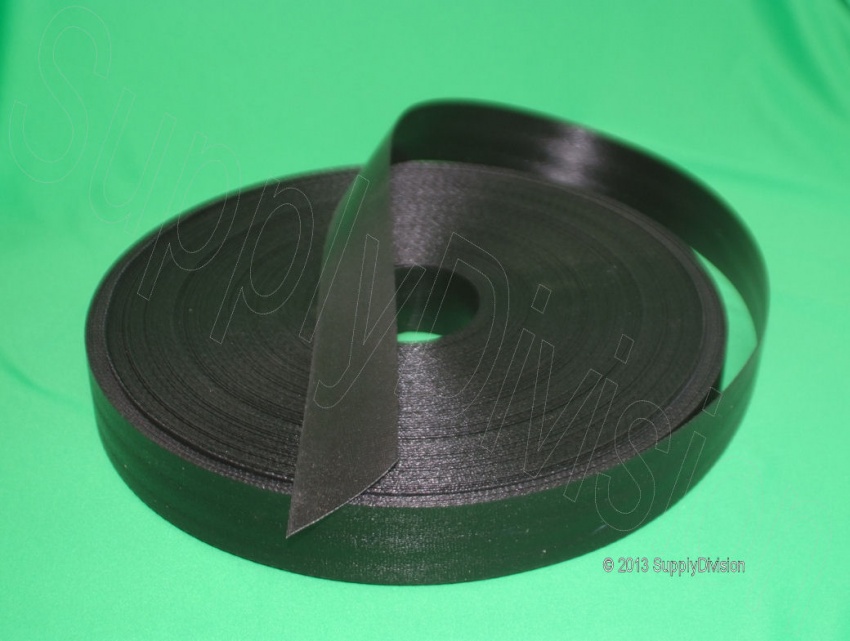

Our 50mm(Approx. 2") wide PVC coated Polyester herringbone webbing is supplied on 100m rolls. Made from UV stabilised yarn and suitable for H/F welding. Discounts start at just 500 metres.

The item has an approximate break-strain of 1300Kg(1.3 tonne: approximately 2,200 pounds).  Normally supplied on 100m rolls it can also be ordered on a 25m sample roll or supplied to order in cut-lengths(cut to order).

Wrong item? Please go HERE for an un-coated herringbone polypropylene option.

If you only require a small quantity of this item please go to TrueTrim.com HERE.



A UV stabilized 50mm(2")wide PVC coated Polyester webbing.
Whilst it was primarily developed for high speed hot-air & high frequency welding applications(taut-liners etc) it has been adopted worldwide for a number of other demanding applications where a reliable high specification is required. Supplied on rolls of 100m.

Benefits
• Fast welding speeds
• Consistent quality
• Strong weld
• This Weldable Webbing can be made to order to your bespoke requirements(minimums and lead-times will apply).
• Market leading breaking strength

This polyester webbing is made from UV stabilized yarn. This PVC coating is not UV stabilized, which will result in it eventually becoming powdery, however that will not affect the strength of the webbing only it's appearance. Please see above for bulk order discount options.

Technical characteristics.
Substrate: Polyester Woven Webbing ; Coating Heat Cured PVC Plastisol  ; Width  47mm +/-1.5mm ; Weights:22.5 -  23.5 g/m (Substrate),  23.5 – 24.5 g/m (PVC Coating), 46.0 – 48.0 g/m (Coated Substrate) ; Woven construction 2/2 Twill 5 Panel ;  Thickness 1.0 mm +/- 0.3mm ; Breaking load 1,300 kgf minimum ; Temperature range -20 to +60° C ;
Note:  These characteristics are given as part of the specification and may be modified to accommodate additional requirements.



This item is available in 50mm Black from stock. White & Grey can be forward ordered(please contact us for those options).

If you only require a small quantity of this item please go to TrueTrim.com HERE.
