Double Tubular Rivets

Double Tubular Rivets
  Zoom
 Double Tubular RivetsDouble Tubular Rivets

Code::  DTR5CNKL1000

Sign-in or create a profile to view prices, discounts and order.

Product Information below.
Sales unit = 1000 components.

Double Tubular rivets: Size/finish availability as drop-down field above.
C = Cap, CP = Capped post & P = Post.

This item is sold in 1000 individual components per item. The "number" designates the diameter of the cap/post bottom and the letter the item: ie. 5C is a cap which has an approximate diameter of 5mm etc. C = Cap, CP = Capped post & P = Post.

To order this item simply select the correct option and quantity in the fields above then click "ADD TO BASKET". Bulk order discount, if applicable, will be deducted automatically.




 Double Tubular rivets: Size/finish availability as drop-down field above.

C = Cap, CP = Capped post & P = Post.  The "number" designated the diameter of the cap/post bottom and the letter the item: ie. 5C is a cap and has an approximatediameter of 5mm.

This steel based tubular rivet is sold in units of 1000 pcs per article. Please see above for bulk order discount bands.

Steel based tubular rivet offered a number of size/finish options(See drop-down field above for current offer)

Each size/finish can be ordered independently of any other. All are compatible with each other EXCEPT the "5" series which will only fit another "5" series component.

A cap (C) and a capped-post (CP) are used for similar appearance on each side of the item.
A cap (C) and post (P) should be used when the rear view is not required to match the front.

The following combinations are possible, measurements are to closest mm.

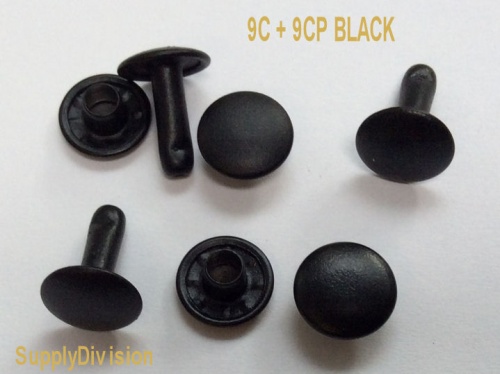

9C(cap) or 11C(cap) with any of the following;
9CP(capped post, 9mm pre-set length), 11CP (capped post, 11mm pre-set length), 8P(post, 9mm pre-set length)
or
10P(post, 11mm pre-set length), 9CP(capped post) or
11CP(capped post, 11mm pre-set length) with any of the following; 9C(cap) or 11C(cap).

and
5C(cap) to 5P(post).


This item is normally set on our KPR1 press.  We are not aware of a "hand" tool to set it.
